Reciprocating Air Compressor: What It Is and When to Use One

How Does a Reciprocating Air Compressor Work?

A reciprocating compressor uses a piston driven by a crankshaft to compress air inside a cylinder. On the intake stroke, the piston moves down, drawing air into the cylinder through an inlet valve. On the compression stroke, the piston moves up, compressing the air and forcing it through a discharge valve into a storage tank or downstream system.

Most industrial reciprocating compressors are two-stage designs. In a two-stage unit, the first stage compresses air to an intermediate pressure, then an intercooler cools the air before the second stage compresses it to final pressure. This cooling between stages improves efficiency and protects the compressor from excessive heat.

Types of Reciprocating Air Compressors

Reciprocating compressors come in several configurations:

• Single-stage, single-acting: One cylinder compresses air in one direction per revolution. Best for low-demand applications up to about 100–125 PSI.
• Two-stage, single-acting: Two cylinders in series for higher pressures (up to 175 PSI) with better efficiency.
• Splash-lubricated (oil-lubricated): Oil lubricates the cylinder walls. Standard for industrial use; requires a downstream filter to remove oil carry-over if oil-free air is needed.
• Oil-free (oilless): Uses PTFE-coated rings and does not require oil in the cylinder. Used in food processing, medical, and clean-room applications.

Reciprocating vs. Rotary Screw Air Compressor

Both types are common in industrial settings, but they're suited for different use cases. Here's how they compare:

• Duty cycle: Reciprocating compressors are typically rated for 50–70% duty cycles, meaning they need rest periods between cycles. Rotary screw compressors run continuously at 100% duty cycle, making them better for high-demand, 24/7 production environments.
• Initial cost: Reciprocating compressors generally have a lower purchase price than equivalent rotary screw units, making them attractive for smaller operations or infrequent use.
• Maintenance: Reciprocating compressors have more moving parts (valves, piston rings, connecting rods) and typically require more frequent maintenance. Rotary screw compressors are simpler mechanically and often have longer service intervals.
• Pressure range: Reciprocating compressors can reach higher pressures (up to 5,000+ PSI in industrial configurations) than most rotary screw units, which typically top out around 200–250 PSI.
• Noise: Reciprocating compressors are generally louder than rotary screw units, especially in two-stage configurations.

When Should You Choose a Reciprocating Air Compressor?

A reciprocating air compressor is a strong choice when:

• Air demand is intermittent rather than continuous (e.g., body shops, small fabrication shops, garages)
• High pressure (above 150 PSI) is required for applications like sandblasting, bottle filling, or pneumatic testing
• Budget constraints make a lower-cost alternative to rotary screw preferable
• The installation needs a smaller footprint
• Portable or towable options are needed for field or remote applications

If your operation runs compressed air continuously for more than 6–8 hours per day, a rotary screw compressor will typically be more cost-effective over its lifetime due to lower maintenance costs and better energy efficiency under continuous load.

Key Specifications to Evaluate

When comparing reciprocating compressors, pay attention to these specs:

• CFM (Cubic Feet per Minute): The volume of air delivered at a given pressure. Match this to your peak demand.
• PSI (Pounds per Square Inch): The operating pressure. Most shop tools require 90–125 PSI; two-stage units typically deliver up to 175 PSI.
• HP (Horsepower): Motor size, which influences both CFM output and electrical requirements.
• Tank Size (gallons): A larger tank smooths out pressure fluctuations and reduces start/stop cycling.
• Duty Cycle: The percentage of time the compressor can run continuously. Look for 50% or higher for reliable shop use.

Common Applications for Reciprocating Air Compressors

• Automotive repair shops and body shops
• Metal fabrication and welding operations
• Sand blasting and surface preparation
• Pneumatic tool operation (impact wrenches, drills, sanders)
• HVAC installation and service
• Agricultural operations
• Compressed natural gas (CNG) fueling stations

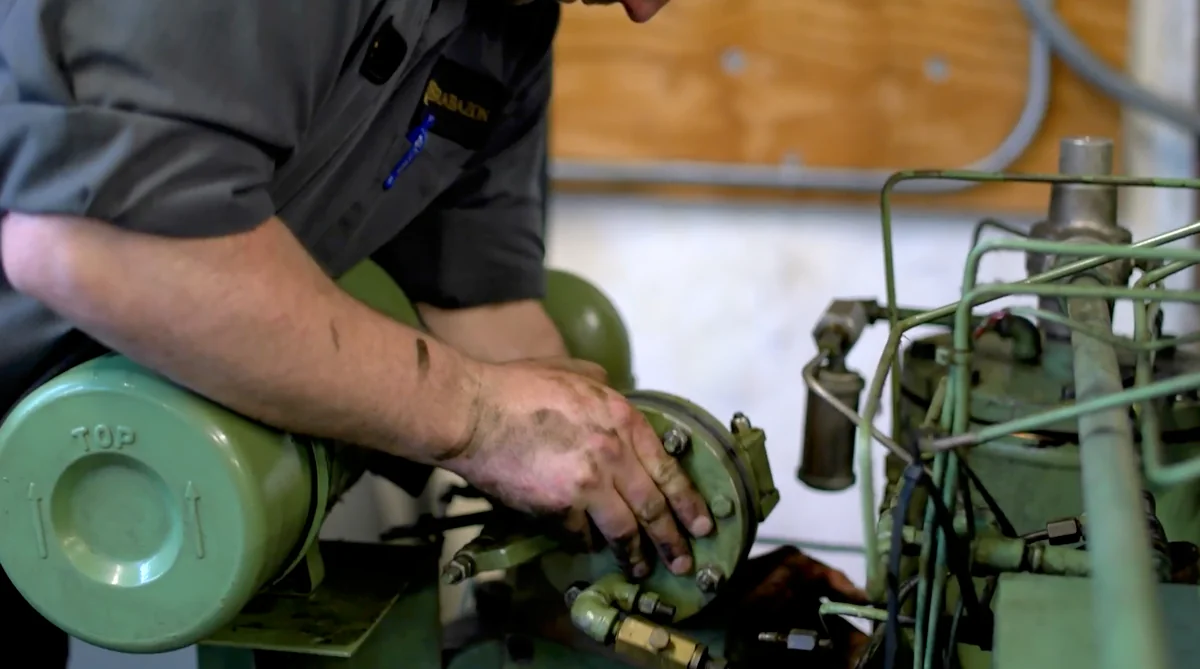

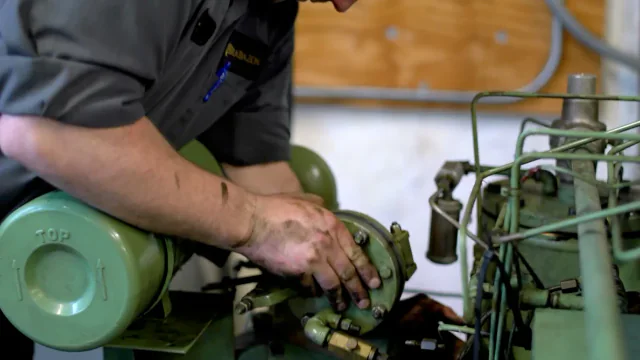

Reciprocating Compressor Maintenance Tips

Proper maintenance extends the life of your reciprocating compressor and prevents costly breakdowns:

• Change the oil: Most oil-lubricated reciprocating compressors require oil changes every 500–1,000 operating hours. Use manufacturer-specified compressor oil.
• Inspect and replace valves: Intake and discharge valves wear over time and are a primary cause of efficiency loss and compressor failure.
• Check belt tension: Belt-driven units need regular tension checks; a loose belt reduces efficiency and accelerates belt wear.
• Drain the tank: Moisture accumulates in the tank from compressed air. Drain it daily (or install an automatic drain) to prevent rust and water contamination in your air lines.
• Replace air filter: A clogged intake filter forces the compressor to work harder. Inspect and replace per manufacturer recommendations.
• Inspect piston rings: Worn rings reduce compression efficiency and increase oil carry-over into the air stream.

Brabazon provides factory-trained service for reciprocating and rotary screw air compressors throughout the Midwest. Contact our service team to schedule preventive maintenance or diagnose a performance issue.
